تفاصيل المنتج:
|
| ماكس أوتليت ضغط: | 0.6mpa ، 6bar | معدل التدفق القصوى: | 10.5M3/h |
|---|---|---|---|
| ماكس شفط رفع: | 3M | قوة المحرك: | 3.0kw (قياسي) ، 4.0 كيلو وات (اختياري) |
| سرعة المحرك: | 1450r / دقيقة | حجم مدخل السوائل: | 1 بوصة مترابطة أو شفة |
| حجم منفذ السوائل: | 1 بوصة مترابطة أو شفة | وزن: | 77KGS (مضخة الألومنيوم) |
| مادة: | الألومنيوم | نوع المحرك: | الانفجار مقاوم |
| مصدر الطاقة: | كهربائي | بناء: | مضخة الحجاب الحاجز |
| وظيفة: | سائل النقل | حجم مدخل/مخرج: | 1 بوصة |
| نوع الاتصال: | مترابطة أو شفة | ||

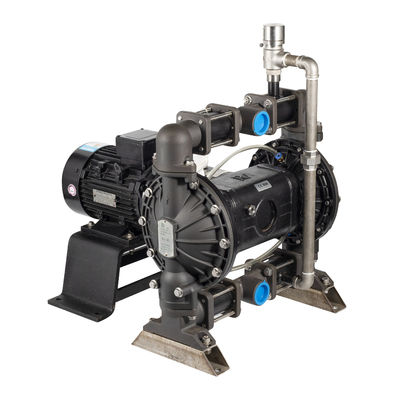

| إبراز: | Aluminum Electric Diaphragm Pump,10.5m³/h Flow Rate Diaphragm Pump,1 Year Warranty Electric Pump,10.5m³/h Flow Rate Diaphragm Pump,1 Year Warranty Electric Pump |
||
| Specification | Value |
|---|---|
| Max Outlet Pressure | 0.6Mpa, 6bar |
| Max Flow Rate | 10.5m³/h |
| Max Suction Lift | 3m |
| Motor Power | 3.0KW standard (4.0KW optional) |
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 1 inch Threaded or Flange |
| Fluid Outlet Size | 1 inch Threaded or Flange |
| Weight | Stainless steel: 122 KGS Aluminum: 77 KGS Carbon steel: 115 KGS |
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
We specialize in diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, and various control valves. Our products have been granted more than 40 patents, including 10 invention patents.
We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS. Our products serve chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical industries.
We maintain long-term relationships with enterprises like BASF, Bayer, and SAMSUNG, and our products are exported to over 70 countries.
