تفاصيل المنتج:
|
| كحد أقصى ضغط العمل: | 120 PSI (0.84mpa ، 8.4bar) | معدل التدفق القصوى: | 270 جم في الدقيقة (1022L/M) |
|---|---|---|---|
| أقصى سرعة ترددية: | 135cpm | الحد الأقصى لارتفاع الشفط: | 5M |
| الحد الأقصى للحبوب المسموح بها: | 0.37in. (9.4mm) | أقصى استهلاك للهواء: | 180SCFM (90L/S) |
| حجم مدخل الهواء: | 3 / 4in | حجم منفذ الهواء: | 1 في |
| حجم مدخل السوائل: | 3 في | حجم منفذ السوائل: | 3 في |
| وزن المضخة: | 79 كلغ | درجة حرارة قابلة للتطبيق: | 5-80 درجة مئوية |
| نوع الاتصال: | اتصال شفة | مواد الختم: | PTFE |
| مادة جسم المضخة: | ص | ||
| إبراز: | 5-80°C Diaphragm Pump,270gpm Max Flow Pneumatic Diaphragm Pump,Hytrel Diaphragm Air Operated Diaphragm Pump,270gpm Max Flow Pneumatic Diaphragm Pump,Hytrel Diaphragm Air Operated Diaphragm Pump |
||

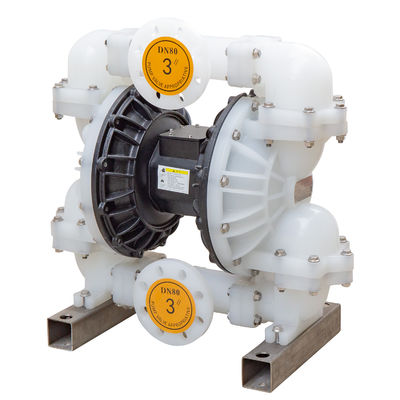

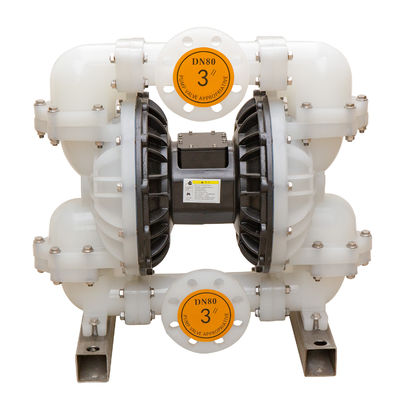

High-performance diaphragm pump designed for wastewater and drinking water treatment in machining applications.
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 1in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | PP pump: 79KGS |
Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.
Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
Available sizes: 1/4" to 3"
Connection types: Threaded (1/4" to 1-1/2" plastic pumps, all metal pumps) or Flanged (1/2" to 3" plastic pumps)
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
D/P, T/T, Western Union - please confirm with us for exact order.
Depends on quantity. Generally 1-7 working days.
Cartons with foam inside & wooden case & pallet.
By international express or sea.
15 years warranty for air motor, 5 years for pump body.
Yes, we can produce according to custom requirements.
