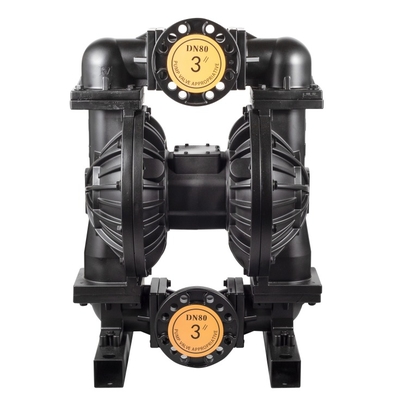

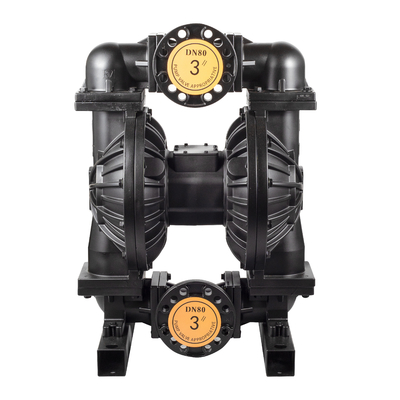

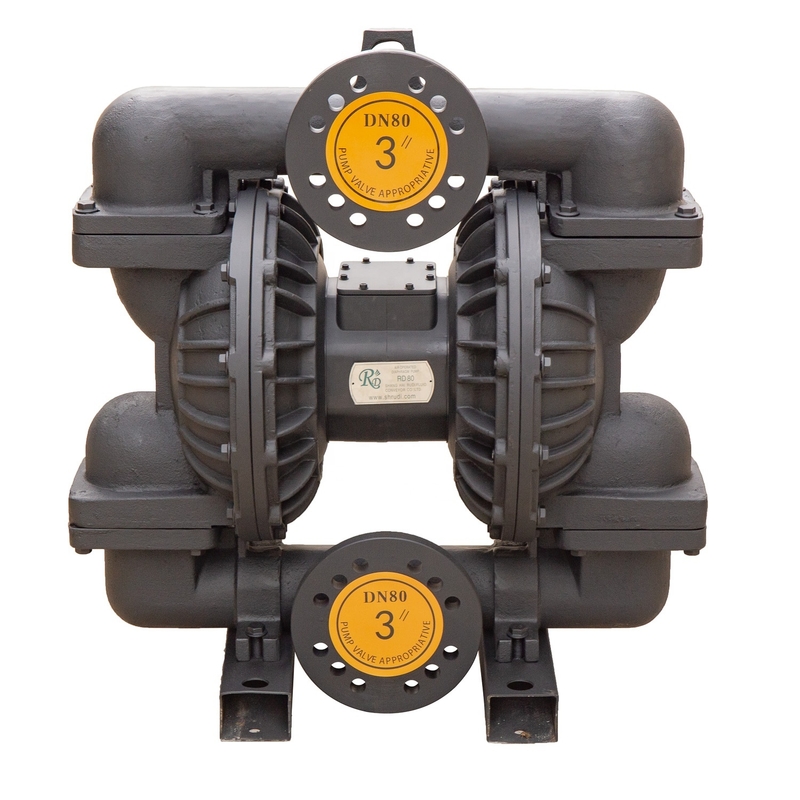

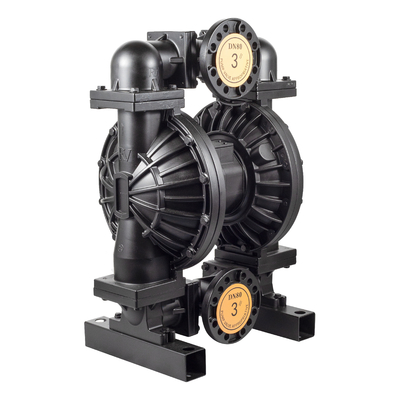

تفاصيل المنتج:
|
| ماكس الضغط: | 120psi (0.84mpa ، 8.4bar) | ماكس تدفق: | 270 جم في الدقيقة (1022 دورة في الدقيقة) |
|---|---|---|---|
| أقصى سرعة ترددية: | 135cpm | الحد الأقصى لارتفاع الشفط: | 5M |
| الحد الأقصى للحبوب المسموح بها: | 0.37in. (9.4mm) | أقصى استهلاك للهواء: | 90 لتر / ثانية |
| حجم مدخل الهواء: | 3 / 4in | حجم منفذ الهواء: | 1 في |
| حجم مدخل السوائل: | 3 في | حجم منفذ السوائل: | 3 في |
| وزن: | 100 كجم | جسم المضخة: | الحديد الدكتايل |
| غشاء: | PTFE | مادة: | الحديد الدكتايل |
| مصدر الطاقة: | هوائي | ||
| إبراز: | 3 inch AODD pump for wastewater,air operated diaphragm pump 120psi,high pressure AODD pump wastewater,air operated diaphragm pump 120psi,high pressure AODD pump wastewater |
||
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022Lpm) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 90L/S |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 1 in |
| Fluid Inlet Size | 3 in |
| Fluid Outlet Size | 3 in |
| Weight | Aluminum 99.5kg |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Application | Other |
| Power Source | Pneumatic |
| Pressure | Low Pressure |
| Structure | Diaphragm Pump |
| Material | Ductile Iron |
| Name | AODD Pump |
| Color | Black |
| Weight | 100kgs |
| Diaphragm | PTFE |
| Brand | RV |
| Packing | Carton |
| Max Pressure | 120psi (0.84Mpa, 8.4bar) |
| Pump Body | Ductile Iron |
| Max Flow | 270gpm (1022lpm) |
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years. We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.
